Piston and Plunger Pumps

piston

fmc-1

Piston And Plunger Pumps

plunger

FMC Technologies pumps have provided exceptional performance and value since their introduction in 1884. Backed by over a century of experience on thousands of projects worldwide, FMC Technologies produces a complete range of piston and plunger pumps for many varied markets, including the general industrial market. As the pioneer and world leader in piston and plunger pump technology, FMC Technologies delivers pumps in sizes, designs, and materials to meet customer and industry requirements. FMC Technologies pumps are setting new standards for low cost of ownership, long service life, and ease of maintenance. FMC Technologies offers a complete line of piston pumps (Bean pumps)

pistonpumpcutaway

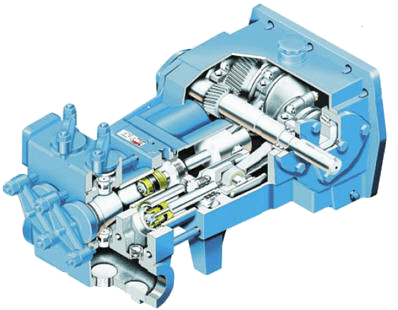

Piston Pump Cutaway

FMC Technologies (Bean pumps) offers a complete line of piston pumps

A piston pump is a type of positive displacement pump where the high-pressure seal cup reciprocates with the cylinder.
FMC offers sizes ranging from 3 HP to 450 HP
Achieving pressures up to 3,000 psi (207 bar)
Flows to 905 gpm (3,168 lpm)
Depending on the application, the pump's fluid ends can be equipped in ductile iron, carbon steel, aluminum bronze, duplex stainless steel, and other high end materials.
All pumps have been carefully designed with oversized bearings and heavy-duty components to provide years of operational life.
FMC Technologies' Bean piston pumps deliver outstanding value and performance for a variety of applications.

plungerpumpcutaway

Plunger Pump Cutaway


FMC Technologies (Bean pumps) offers a complete line of piston pumps

  • A piston pump is a type of positive displacement pump where the high-pressure seal cup reciprocates with the cylinder.
  • FMC offers sizes ranging from 3 HP to 450 HP
  • Achieving pressures up to 3,000 psi (207 bar)
  • Flows to 905 gpm (3,168 lpm)
  • Depending on the application, the pump's fluid ends can be equipped in ductile iron, carbon steel, aluminum bronze, duplex stainless steel, and other high end materials.
  • All pumps have been carefully designed with oversized bearings and heavy-duty components to provide years of operational life.
  • FMC Technologies' Bean piston pumps deliver outstanding value and performance for a variety of applications.

Increases in component technology have enhanced the Bean pump product line. By working directly with its partners, FMC Technologies has customized the pump's component technology and serviceability to meet their customers requirements. The customization in component technology per application increases the hours of operation per component. The design of our pump's front piston cover provides quick access to allow for a decrease in time to service. This combination of technology and design has increased our partners uptime while decreasing their downtime, life cycle cost and cost of pump ownership.
